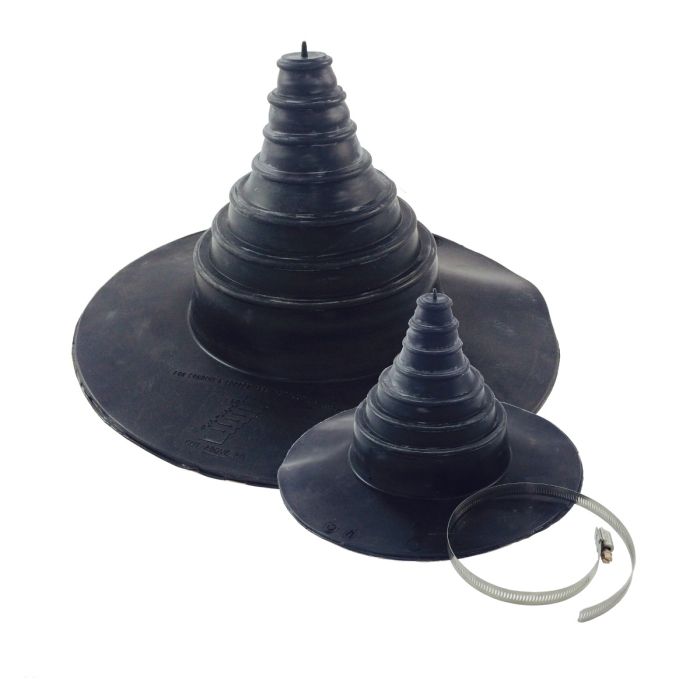

Pipe Boot
Used For: EPDM pipe boots are used to create a waterproof seal between the roof deck and protruding pipework.
Installation Notes:
1) After installing the roofing membrane, place the pipe boot in position by sliding it over the drain or pipe.
2) Cut the pipe boot to the required diameter.
3) Slide the pipe boot over the pipe so that the flange meets the deck.
4) Install the jubilee clip using a screwdriver to secure the pipe boot to the pipe.
5) Mark a circle around the flange on the roofing membrane to show where the rubber primer is to be applied.
6) Lift the flange and apply the rubber primer.
7) Wait until the primer is touch dry and press the flange firmly onto the primed area.
8) Run a seam roller over the flange to ensure full adhesion to the membrane.
You might also need
If you’re buying for a new roof or replacing an old one, you will need to consider the following components in your roof kit...
- Adhesives
- Tapes
- Drains
- Edge Trims
- Tools
SKU |
CB-Pipe-Boot |
|---|---|
Stock Type |
Warehouse Fulfilled |
Brand Name |
Rubber4Roofs |
Material |
EPDM Rubber & steel hose clip |
Color |
Black |
Size |
25-150 mm Diameter |
-

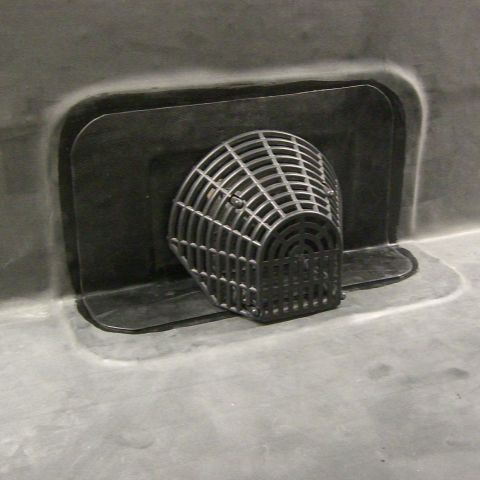

Horizontal Drain Kit£44.38 £36.98 -

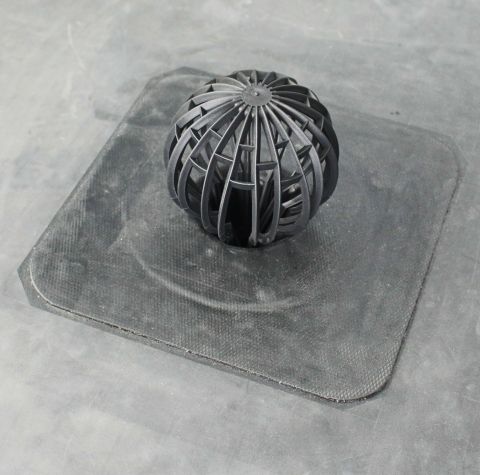

Internal Drain 68mm Kit£39.74 £33.12 -

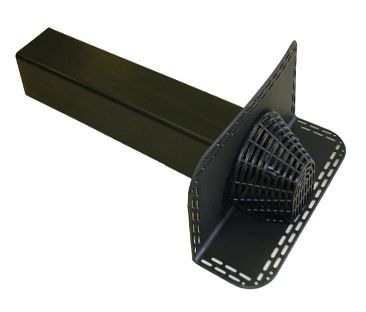

Horizontal Outlet 100mm with Leaf Grate£23.76 £19.80
